파타고니아 쿼츠라이트 슬래브 배치: 컷아웃 주변에 대담한 패턴 배치

A large Patagonia Quartzite island can look spectacular on a slab layout.

Then the sink is cut out.

Or the cooktop opening is removed.

Suddenly, the crystal field that visually anchored the composition is partly gone.

A dark geological fragment that felt balanced before cutting becomes much more dominant.

Or a narrow strip of stone between an opening and an edge now contains one of the most visually complex parts of the slab.

This is why a Patagonia Quartzite slab layout should not be judged only as a full rectangle placed over an attractive slab.

보다 중요한 질문은 다음과 같습니다:

Think of the Cutout as Negative Space

A sink or cooktop is not another stone feature.

It is an area of stone that will no longer be part of the visible countertop surface.

For a relatively uniform material, this may create only a modest visual change.

For Patagonia Quartzite, where large-scale natural features can occupy substantial areas of the slab, the difference can be much more noticeable.

Map Three Zones Before Moving the Layout

Instead of immediately asking whether the sink should move left or right, divide the proposed Patagonia Quartzite layout into three visual zones.

This makes the layout easier to read.

The goal is no longer simply “put the sink here.”

The goal becomes understanding how the opening reorganizes all three zones.

Start with the Actual Patagonia Quartzite Slab

Use the current proposed slab rather than a catalogue photograph or a previous project.

At full-slab scale, identify the natural areas that matter visually to the design.

Depending on the actual slab, these may include:

• large pale crystalline fields;
• cream or light beige transitions;
• smoky grey areas;
• darker geological fragments;
• irregular brecciated relationships; and
• other distinctive natural features visible in that particular slab.

Do not classify every geological feature as something that must be preserved.

Instead, identify which areas the design team wants to remain important in the finished surface.

Now Place the Complete Countertop Outline

Use the current finished dimensions.

Show the complete countertop or island outline first, without mentally ignoring the opening.

Then add:

• sink opening;
• cooktop opening where applicable;
• faucet or accessory holes where relevant;
• 마감 가장자리;
• 이음새;
• waterfall relationships; and
• primary visible sides.

The cutout must be reviewed inside the complete finished component.

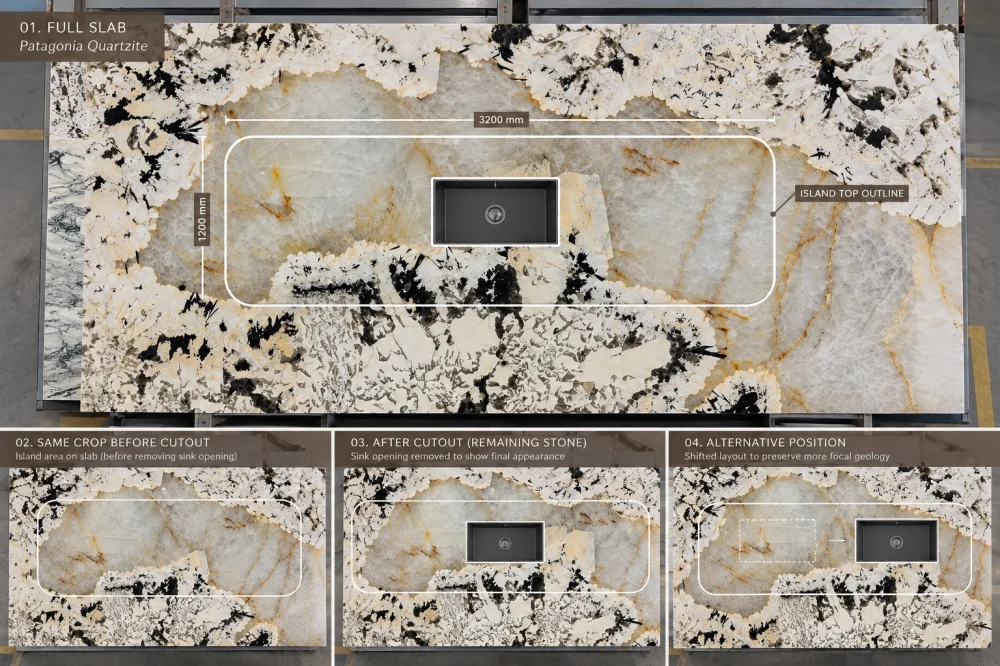

Layout A — The Cutout Removes the Focal Area

Imagine a Patagonia Quartzite slab with a large pale crystal field that the designer wants to feature.

The first countertop position appears attractive.

But the sink opening sits directly over the most important part of that crystal field.

This is why reviewing only the outer countertop outline can be misleading.

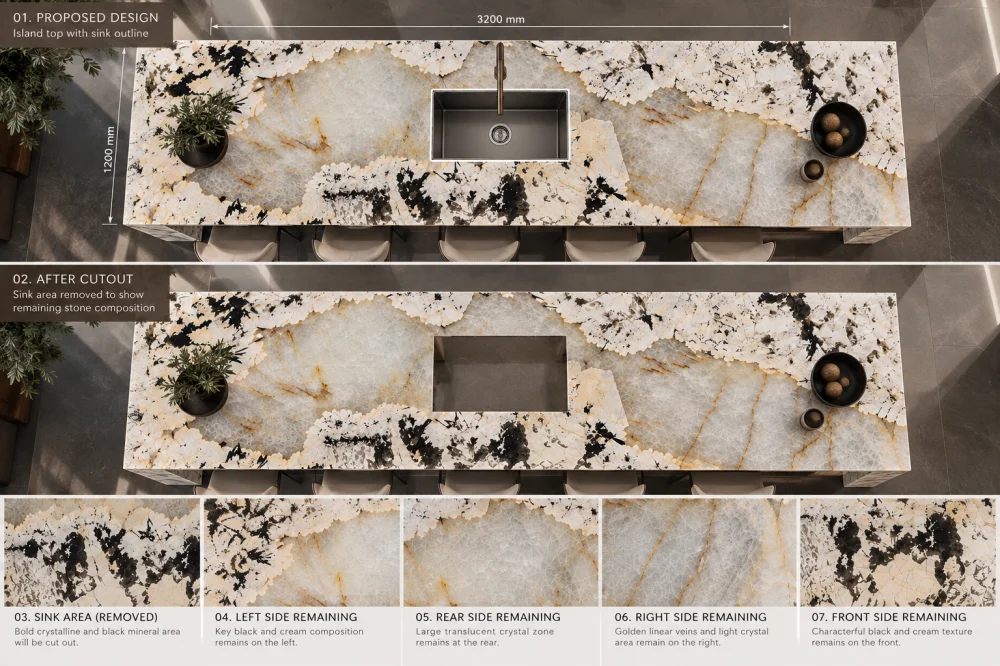

Remove the Opening from the Image

For visual approval, simulate the actual negative space.

Do not merely draw a thin rectangle over the slab.

Temporarily hide or neutralize the area that will be removed.

Now ask whether the remaining Patagonia composition still works as intended.

Layout B — Move the Countertop, Not the Cutout

In many projects, the sink or cooktop location is controlled by the cabinet, appliance or architectural design.

That means the stone layout may be the variable—not the functional opening.

Keep the finished geometry unchanged.

Move the entire countertop outline across the same Patagonia slab.

This changes which geological areas fall inside the opening and which remain visible.

Compare What Is Lost and What Is Preserved

Do Not Automatically Preserve the Boldest Feature

There is another side to the decision.

Sometimes allowing an opening to remove part of a very strong geological area can create a calmer finished countertop.

The goal is not:

Save every dramatic feature.

The goal is:

Decide intentionally what remains visible.

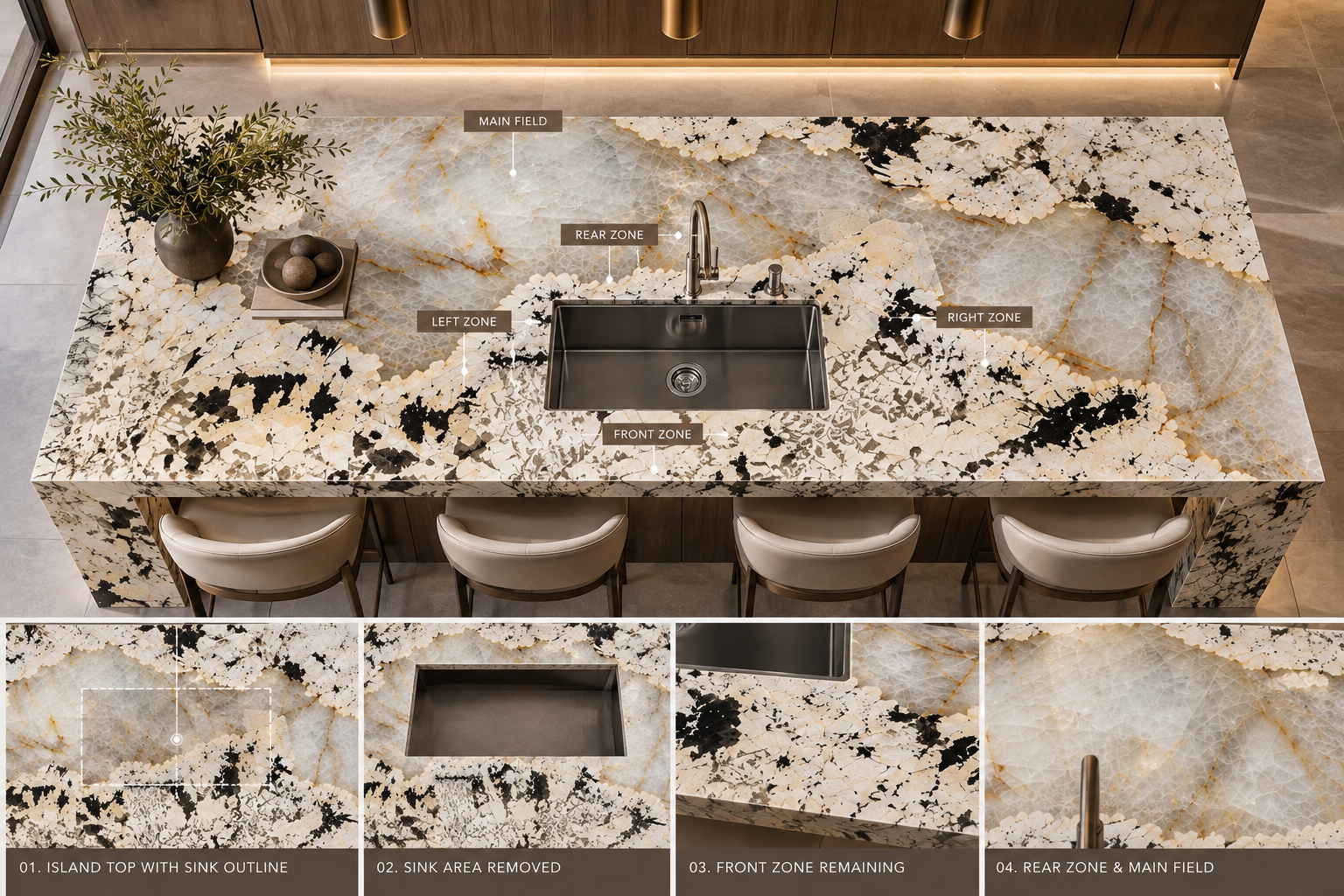

The Stone Around the Cutout Matters as Much as the Stone Inside It

Once the opening is removed, attention shifts to the remaining stone immediately around it.

For a sink opening, review the four surrounding zones:

These remaining areas should be visible on the layout review rather than treated as incidental strips.

Narrow Stone Zones Need Fabricator Review

Visual placement and fabrication feasibility are related, but they are not the same decision.

A designer may prefer a particular Patagonia Quartzite crop because of the crystal composition around an opening.

The fabricator still needs to review the actual cutout geometry, surrounding stone, natural features, fabrication method, handling and project requirements.

Do not convert a visually preferred crop into an automatic fabrication release.

Sink and Cooktop Cutouts Create Different Visual Voids

A sink opening and a cooktop opening may remove different proportions and locations of the stone surface.

They may also sit differently within the overall countertop composition.

Therefore, avoid approving a Patagonia Quartzite layout with a generic box labelled “cutout.”

Use the current project geometry.

Faucet and Accessory Holes Can Matter Too

Small holes remove much less stone than a sink, but they can still interact with highly distinctive local features.

Where the pattern is visually sensitive, show relevant holes on the current layout rather than adding them only after visual approval.

This is especially useful when the surrounding rear zone is narrow or visually important.

What Happens When There Are Two Openings?

Some large islands contain both a sink and a cooktop.

Now the visual field is divided into several remaining stone areas.

In this situation, do not focus on preserving one isolated crystal zone.

Review the rhythm of the entire finished surface after both openings are removed.

Seams Add Another Interruption

A seam is different from a cutout because the stone continues on the other side, but it still interrupts the way a bold Patagonia pattern is perceived.

If a countertop contains both an opening and a seam, show both on the same visual review.

다음과 같이 질문하십시오:

• What natural movement is removed by the opening?
• What movement reaches the seam?
• What begins on the adjacent piece?
• Which side is most visible from the room?
• Does the combination create the intended composition?

A Waterfall Changes Which Pattern Area Deserves Priority

For a Patagonia Quartzite waterfall island, the top cannot be optimized in isolation.

A layout shift that improves the stone around the sink may also change which slab area remains available for the waterfall return.

Review the visible top and vertical return together before treating either crop as final.

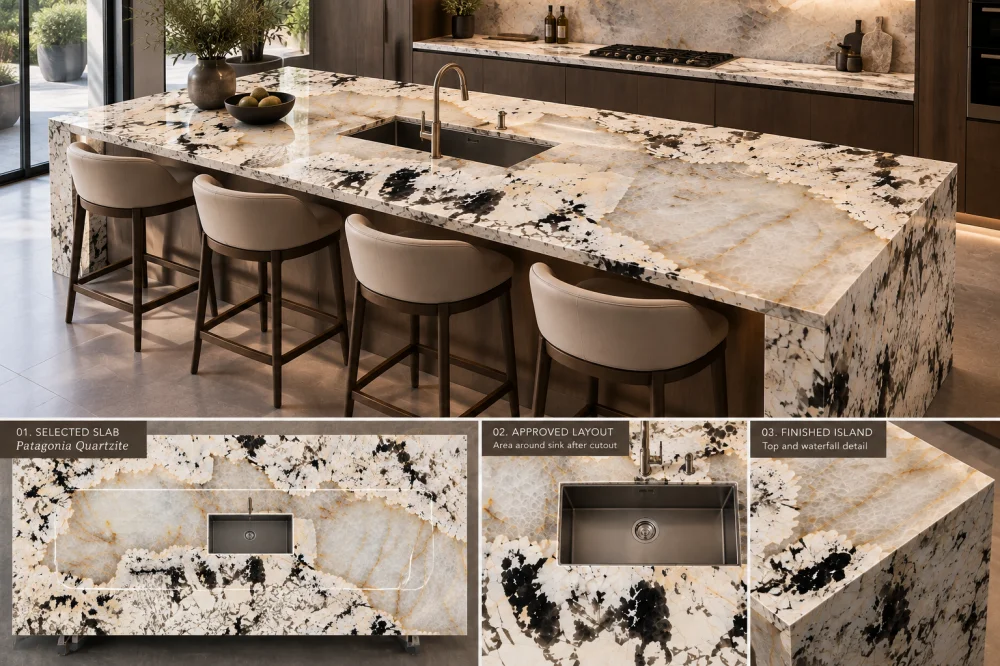

Look at the Layout from the Room, Not Only from Above

A CAD or overhead slab layout shows where material will be removed.

It does not fully show how the finished countertop will be experienced.

After preparing the alternative Patagonia Quartzite slab layouts, extract the finished surfaces and review them from the main room viewpoints.

For an island, these may include:

• the room entrance;
• 앉아 있는 쪽;
• the principal living-space view;
• the working side; and
• the waterfall end.

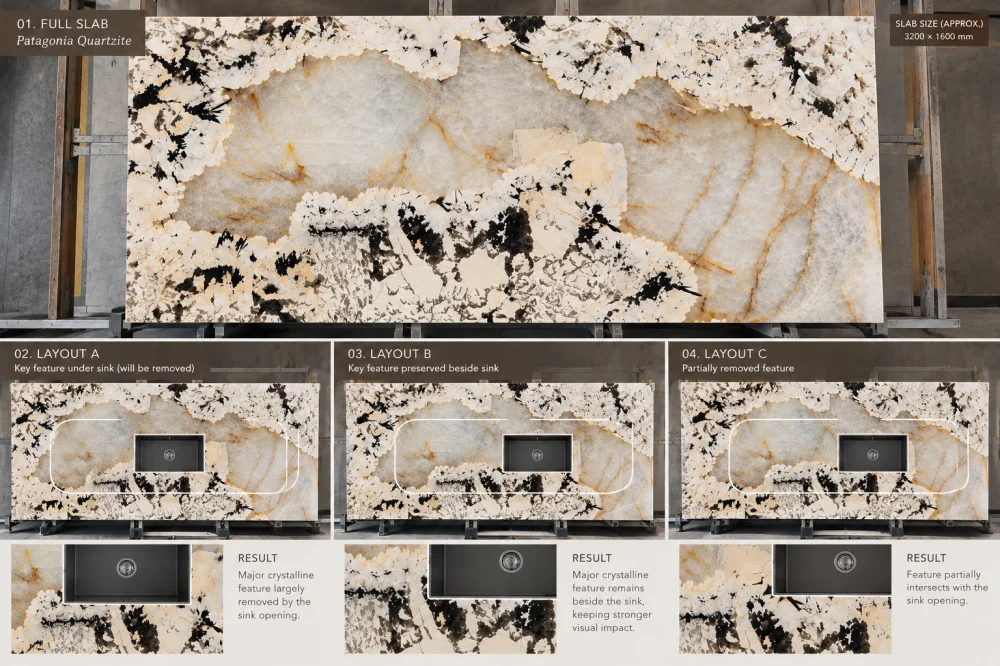

Use Three Layouts to Make the Decision Clear

For many projects, three controlled alternatives are more useful than a large number of slightly different screenshots.

Keep the slab, countertop dimensions, opening geometry and orientation constant.

Change only the countertop position on the slab.

Do Not Optimize Pattern at the Expense of the Complete Cutting Plan

A visually attractive Patagonia Quartzite slab layout still needs to fit within the usable slab area and the wider fabrication plan.

The complete project may also require:

• 월풀 패널;
• 백스플래시 조각;
• perimeter countertops;
• end panels;
• other visible furniture surfaces; or
• replacement or contingency considerations defined by the project team.

Moving one large island crop to preserve a crystal field can change what remains available for those pieces.

For the broader distinction between total slab dimensions and the area actually available to a cutting plan, see the Natural Quartzite Usable Area vs Gross Slab Area guide.

Direction Still Needs to Stay Traceable

After the preferred Patagonia Quartzite crop is selected, preserve its orientation through the drawing and cutting-review process.

A rotated or flipped piece may still fit geometrically while producing a different visual result.

그만큼 시공 도면용 석영암 맥맥 방향 기호 guide explains why direction references should be connected to actual slab images and cutting layouts when pattern placement matters.

What Should Be Approved Visually?

The visual record should make the cutout consequence obvious.

자주하는 질문

1. Why do cutouts matter so much in a Patagonia Quartzite slab layout?

파타고니아 쿼츠라이트는 대규모의 결정질 및 지질 구조를 포함할 수 있으므로, 싱크대나 조리대 개구부를 설치하면 설계된 조리대 컷트에 비추어 볼 때 시각적으로 중요한 부분이 제거될 수 있습니다. 컷아웃 영역을 제거한 후에도 전체 컷트와 남은 석재를 모두 검토하시기 바랍니다.

2. Should the strongest Patagonia Quartzite pattern always be kept away from a sink cutout?

아니요. 모든 두드러진 지형 요소를 반드시 보존해야 한다는 보편적인 규칙은 없습니다. 설계 의도에 따라, 개구부는 해당 지형을 피하거나 일부분을 관통하거나, 더 강렬한 부분을 제거하여 보다 안정된 최종 구성으로 연출할 수 있습니다. 이러한 선택은 실제 판재의 특성을 고려하여 이루어져야 합니다.

3. Should I move the sink or move the slab layout?

싱크대 위치가 이미 캐비닛 및 프로젝트 도면에 의해 규정되어 있다면, 슬래브 위에서 조리대 전체 윤곽의 대체 배치를 시험해 보는 것이 더 적합할 수 있습니다. 기능적 개구부 형상에 대한 모든 변경은 석재의 외관만을 위해 이루어지는 것이 아니라, 담당 프로젝트 관계자들과 협의하여 진행해야 합니다.

4. What areas around a sink cutout should be reviewed?

Review the stone remaining in front of, behind and on both sides of the opening, together with the larger uninterrupted countertop fields. Fabrication feasibility and the actual condition of narrow surrounding zones should also be reviewed by the responsible fabricator.

5. How should a cooktop opening be shown on a Patagonia Quartzite layout?

Use the current project opening geometry and show it directly on the actual slab layout. The review should make clear which stone area disappears and how the remaining pattern relates to the rest of the countertop, seams, edges and adjacent pieces.

6. What if the island has both a sink and a cooktop?

Review both openings simultaneously. They divide the countertop into several remaining visual fields, so the complete post-cutout composition is more useful than optimizing one geological feature in isolation.

7. Should a Patagonia waterfall be planned at the same time as the cutout?

Where a waterfall is part of the island, review it with the top. Shifting the island crop to improve pattern placement around an opening may change which slab area remains available for the vertical return.

8. What should I send HRST STONE for a Patagonia Quartzite slab-layout review?

Send Josh the actual or requested slab references, current countertop dimensions, sink and cooktop information, drawing revision, finish, edge concept, seams, waterfall requirements, visible sides, important room views, quantity and delivery destination.
